Clarity Pro Touch 27 "UHD 4Kモニター65W PD、ウェブカメラ、タッチスクリーン

SKU: 27C4KPDWT
価格:
販売価格¥179,999
在庫:

In Stock

スーパー貯蓄セール ✴️ : 20%オフ コード付き alg20

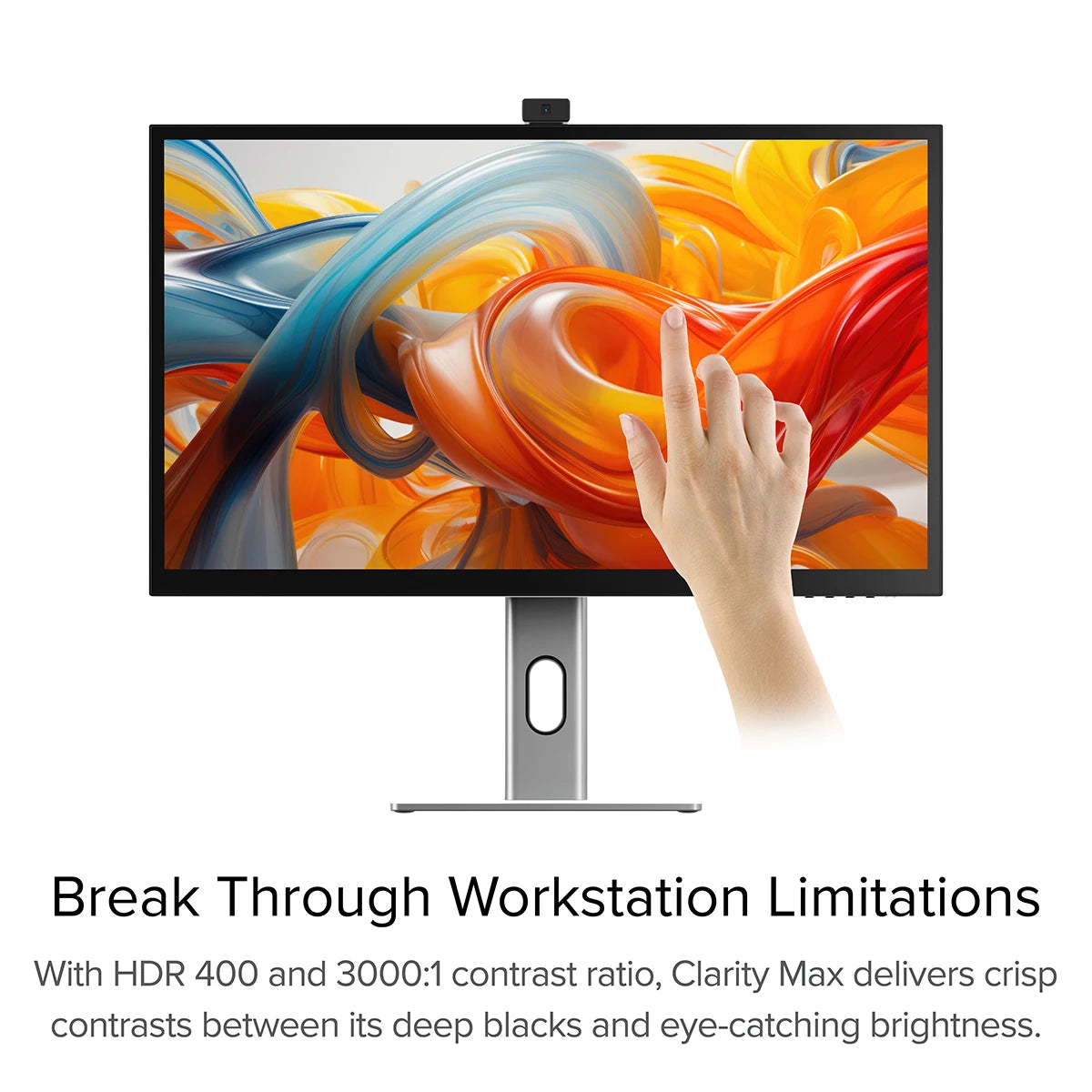

比類のない4Kタッチスクリーン

Clarity Pro Touchの精密な10ポイントタッチスクリーンを使用すると 仕事。

ハンズオンを取得します

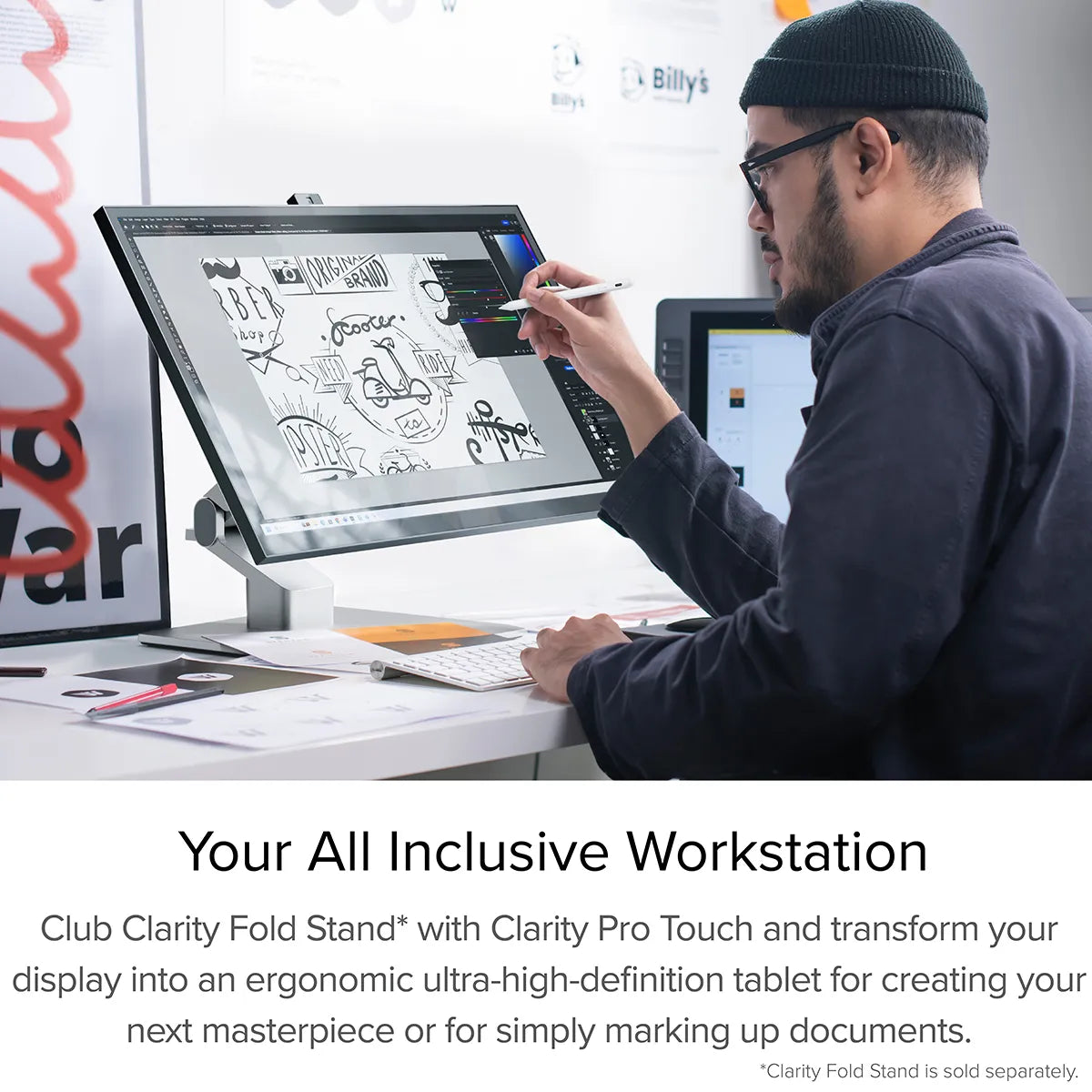

Clarity Pro Touchを使用すると、指や 容量性のスタイラス。

直感的なタッチナビゲーション

あなたが慣れているすべての直感的なタッチジェスチャーを使用して、デジタルキャンバスをナビゲートします お使いの携帯電話とタブレット*。

精密10ポイントマルチタッチ

一度に10ポイントのタッチを追跡できる超薄い1つのガラスソリューションタッチスクリーンを使用して、 仕事に近づいたことはありません。

*タッチジェスチャーは、アプリケーションと操作システムに依存することです。
クリエイターのために作られました
あなたがいつも夢見ていたキャンバス

ClarityProは、絶対を必要とするデジタルアーティスト向けの例外的なディスプレイです 彼らの仕事に対する自信。このスタジオ品質、27インチ4Kディスプレイは、あなたの作品を完璧な色で提供します、 格納式の8MPウェブカメラは、常に最高のものを見ていることを保証します。そのリアUSBハブはあなたを許可します スタジオを整理して、ワークステーション全体に1つのケーブルを使用して接続し、すべてを残します 本当に重要なことに焦点を当てます:あなたの次の傑作。

写真編集

指や スタイラスは、Lightroomで迅速に完璧なレベルを見つけたり、広範なライブラリをナビゲートしたりします。

オーディオミキシング

ClarityProTouchを使用して、まったく新しい方法であなたの音楽と対話する 10入力精度タッチスクリーン。仮想楽器を微調整し、モーフで遊んで、 Pro ToolsやAbleton LiveなどのDAWで新しいサウンドを発見してください。

デジタルイラスト

Clarity Pro TouchのPrecision Touch Screenでアイデアを実現してください。使用 あなたの指またはa Adobe Photoshop、Illustrator、Sketchupなどのプログラムと対話する静電容量性スタイラス まったく新しい方法。

タッチ用に構築されています

アクセスするために2本の指でClarityの右下隅をスワイプするなど、迅速かつ簡単なショートカット タッチメニューは、お気に入りのアプリをナビゲートする方法を完全に変えることができます。

クリスタルクリア画像で見事に見えます

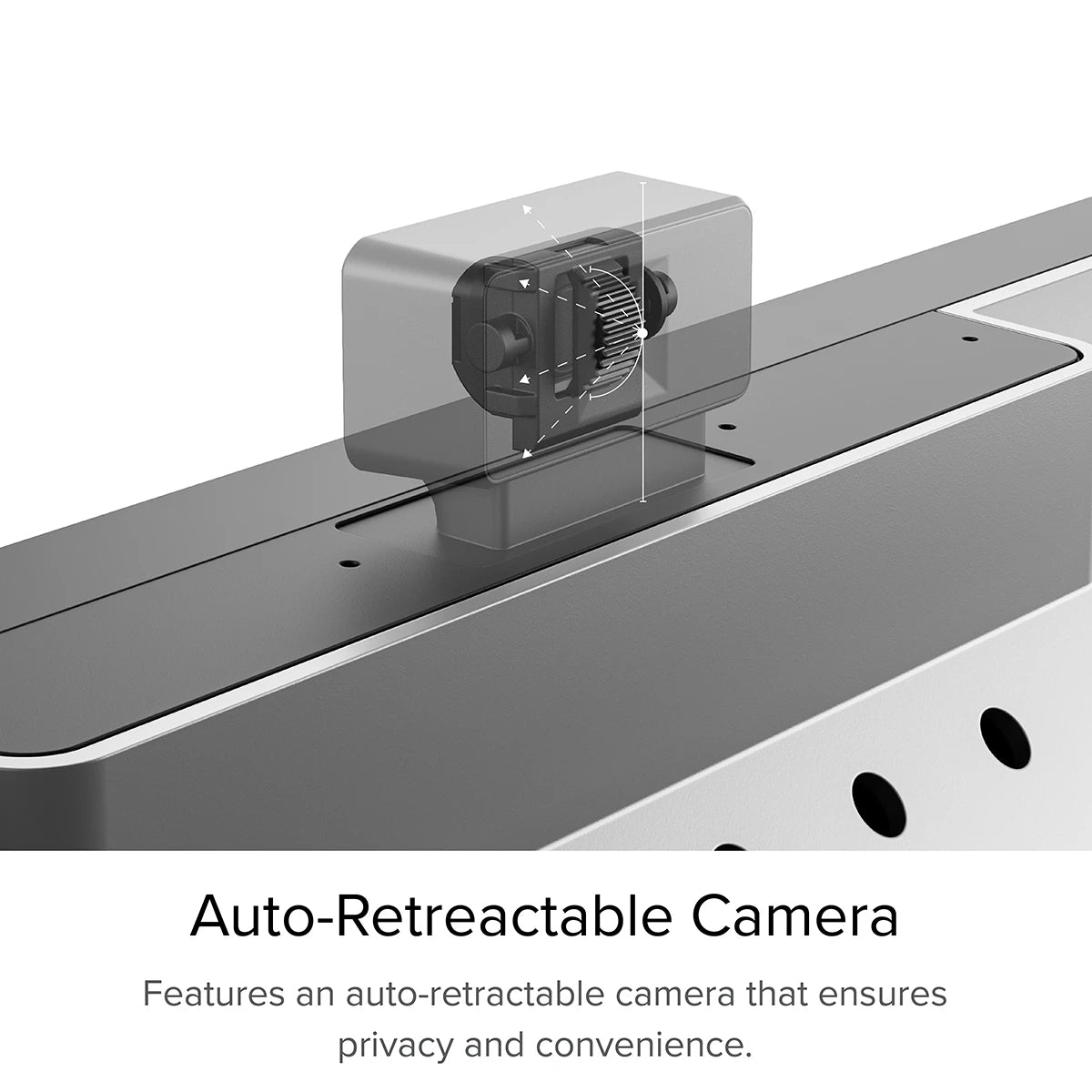

8MP格納式ウェブカメラ

ClarityProの8MP格納式のクリスタルクリア画像で最高の足を前に置いてください ウェブカメラ。 Clarity Proのスマートウェブカメラ

使用していないときにモニターに自動的にスライドし、誰もスパイするのを防ぎます 手動のプライバシースイッチの手間がかからずにあなたのウェブカメラをブロックするたびに コールにジャンプします。 Clarity Proの8MP格納式ウェブカメラを使用すると、見事に見えますが、 あなたはしたい。

あなたが愛するアプリで動作します。
あなたのウェブカメラを使用するすべて
さようならぎこちないフレーミング

ウェブカメラの角度は、リアスクロールホイールを介して簡単に調整され、常にあなたが 注意の中心。 Clarity Proのウェブカメラであなたの最高の角度をダイヤルするのにわずか数秒かかります 調整ホイール - しかし、あなたが作る印象は一生続きます。あなたのすべてに別れを告げてください ラップトップのウェブカメラの厄介な角度とあなたの最高の外観へのこんにちは。

ビルトインUSBハブ
1、6の関数の8つのポート
  1. USB-A
  2. USB-B
  3. hdmi
  4. displayport
  5. USB-C
  6. オーディオ出力
さようならぎこちないフレーミング

ClarityProの間で10億以上の色でこれまでにないようなあなたのクラフトを展示する 息をのむような27インチ4Kスクリーン。その並外れた色域、鮮やかな350 cd/m2の明るさと Sharp HDRのコントラストにより、創造的な評判に耐えることができる強力なツールになります。

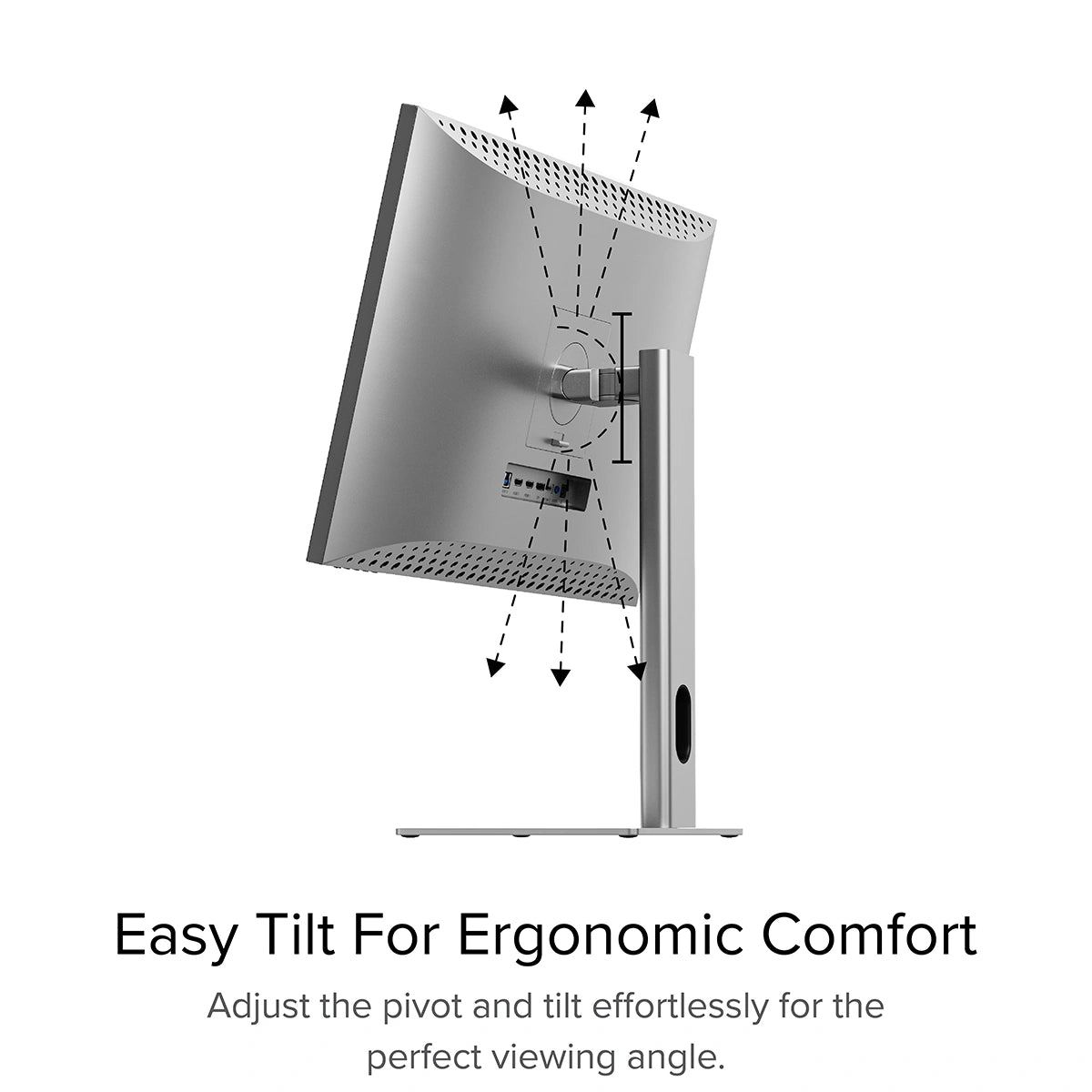

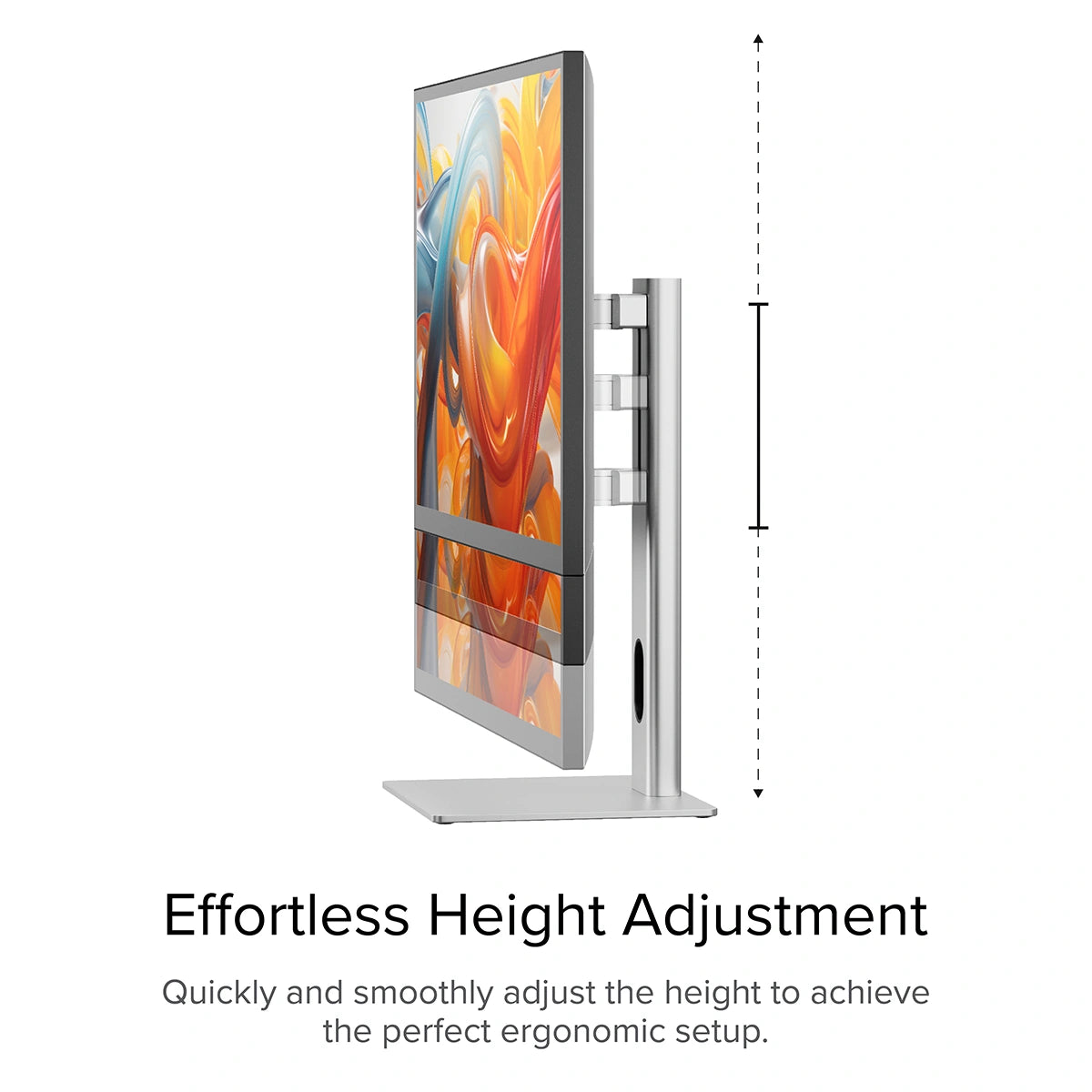

ピボット、チルト、スイベル

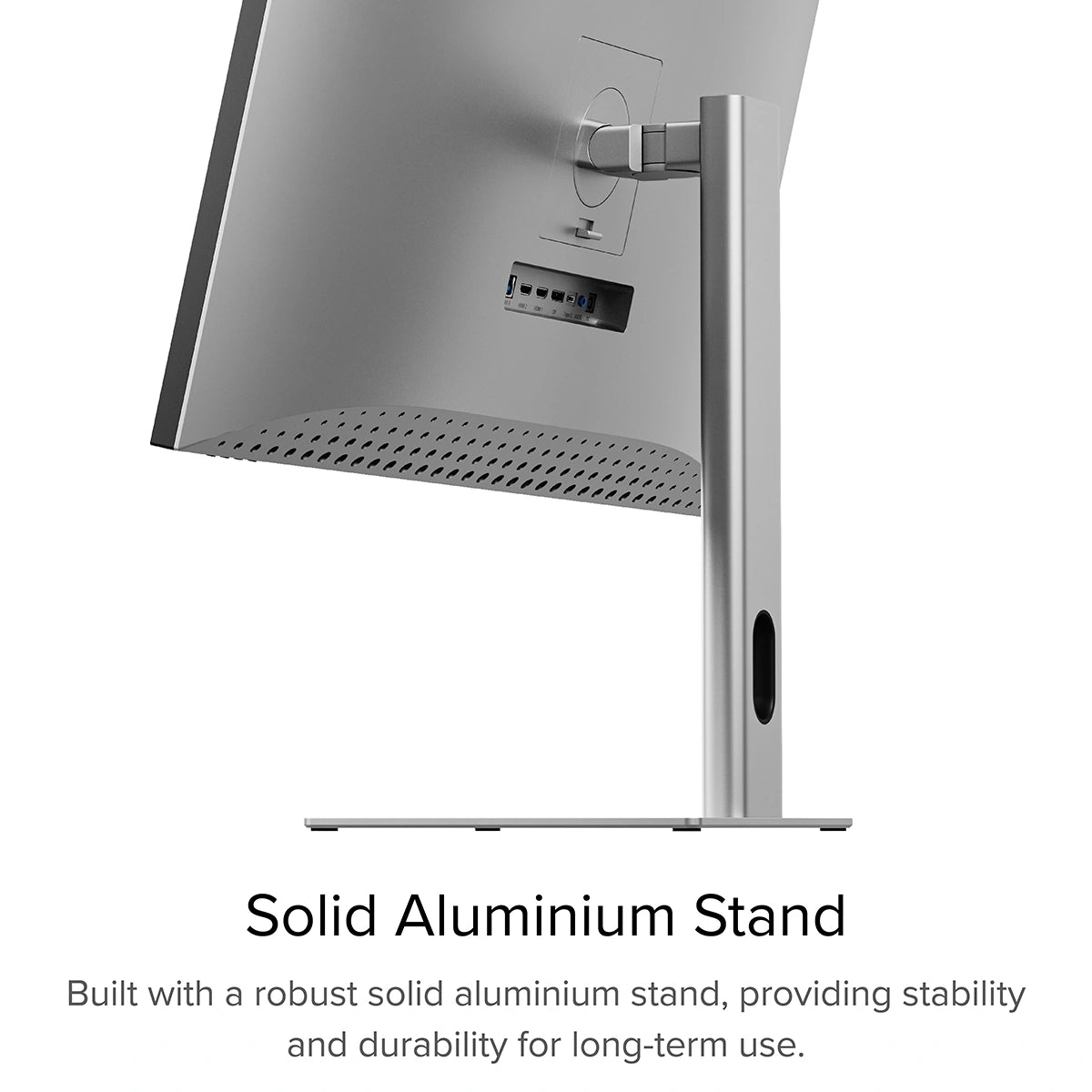

調整可能なスタンド

私たちのアルミニウムスタンドにより、ClarityProを必要な場所に簡単に配置できます それ、 人間工学に基づいた快適さを得るために、ディスプレイを上げたり、ピボットしたり、傾けたり、回転させたりします。

簡単に表示するための人間工学

Clarityは、面内スイッチング[IPS]も特徴です。 IPSディスプレイパネルテクノロジーが有効になります 職場チームは、角度から178度まで同じ画面を表示する[ほぼ完全に 横向き]、画質を低下させることなく。

風景写真

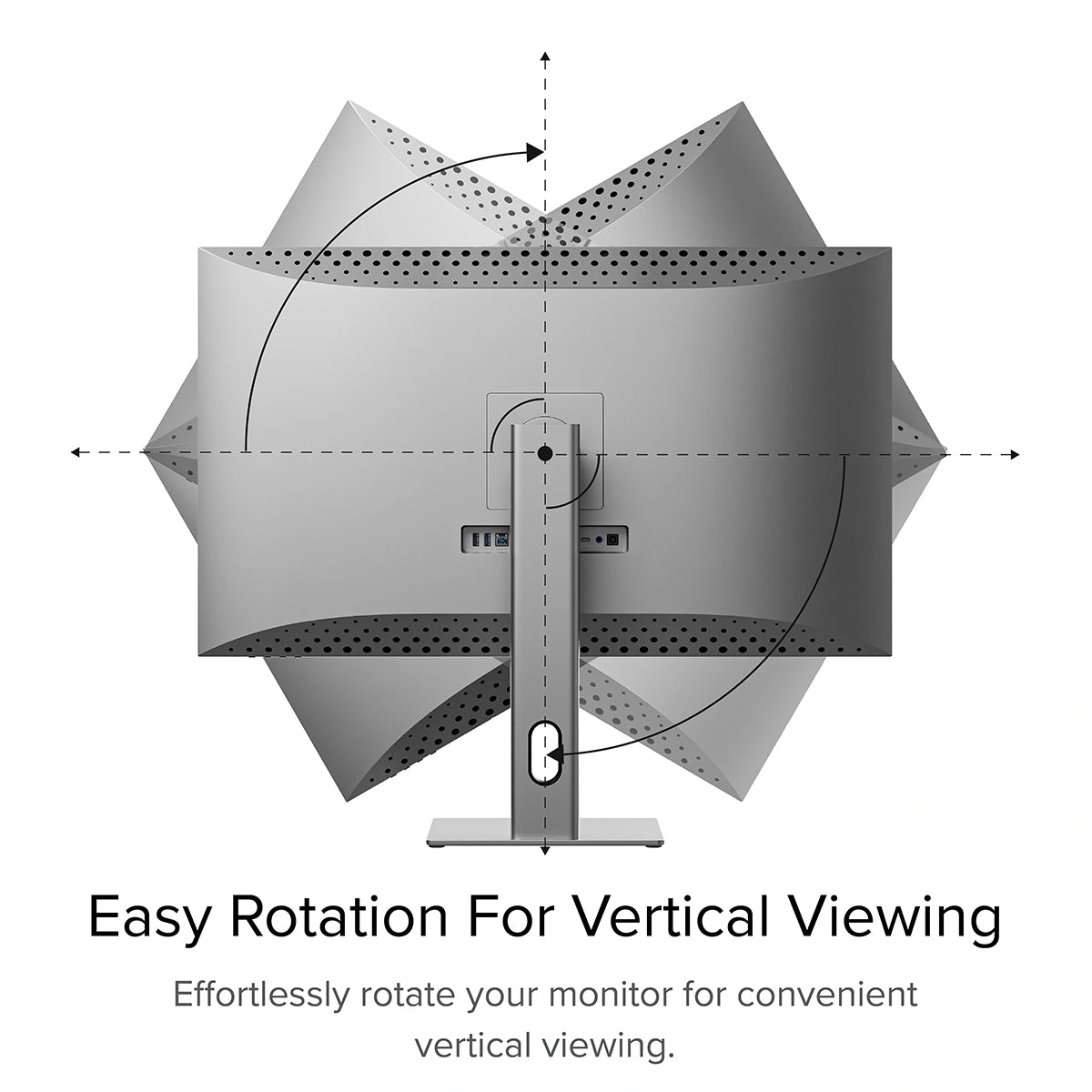

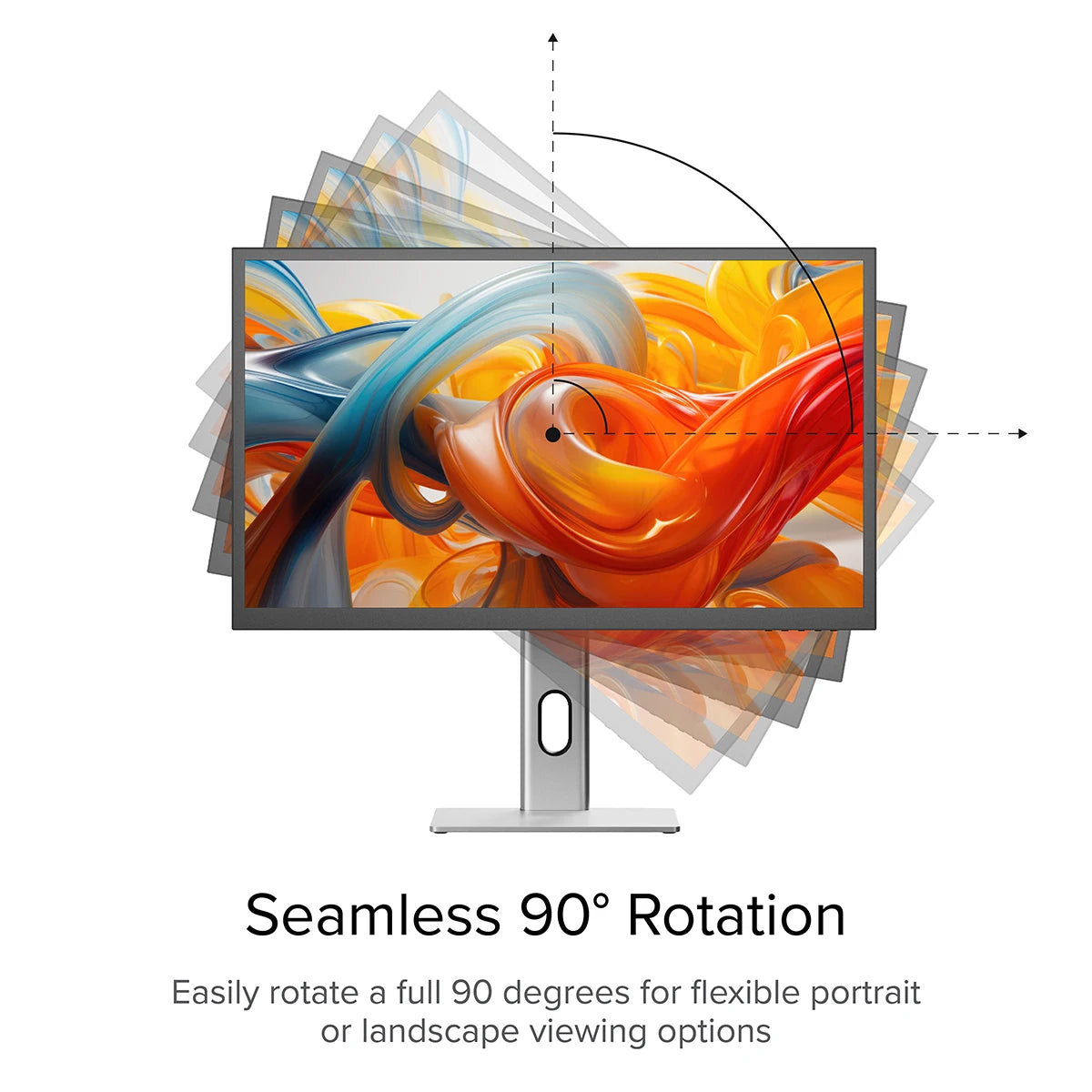

数秒で切り替えます

Clarityのスマートローテーションセンサーを使用すると、風景からポートレートに切り替えるのにわずか数秒かかります。 垂直ビデオの編集、電子メールへの応答、ライブストリームの監視に最適です。あなたが〜とき 完了、バックバックの切り替えも同じくらい簡単です。

寸法と可動域
アクセサリー
明確にもっとしてください
今すぐ買い物をしてください Clarity-Double-Image-2
ガイド
ClarityのMacOSタッチスクリーンドライバーのインストール
学ぶ もっと Clarity-Double-Image-V2
明確な左
ガイド
私たちの範囲を探索してください
今すぐ買い物をしてください
Clarity-Right
Frequently Asked Questions

一般的な

Clarity でラップトップを充電するにはどうすればよいですか?
ラップトップ(最大65W)でラップトップを充電するには、必要なワット数をサポートするUSB​​-Cケーブルを介してモニターに接続するだけです。

ただし、コンピューター上のPD(電力供給)と互換性のあるUSB-Cポートに接続する必要があります。

これらは、ラップトップのポートの横にあるバッテリーアイコンの存在によって識別される場合がありますが、多くの場合、ユーザーマニュアルまたはメーカーのWebサイトをチェックして、どのUSB-CポートがPDをサポートしているかを把握する必要があります。

すべてのThunderbolt 3および4ポートはPDをサポートしています。
Clarity の USB-A ポートはどのように使用すればよいですか?
Clarityの2つのリアUSB-Aポートに接続したコンピューターにアクセスするには、コンピューターが次のことを確認する必要があります。

どちらかを介して透明度に接続されています:
  1. ClarityのUSB-Cポート
  2. ClarityのUSB-Bポート

  3. Clarityの「Active USB」モードは、コンピューターに接続しているのと同じUSBポートに設定されています。

    Clarityの「Active USB」モードを変更するには、Clarityのメインメニューの「その他の設定」メニューで「USBスイッチ」に移動します。

    たとえば、コンピューターがUSB-Cを介してClarityに接続されている場合、「USBスイッチ」メニューで「Type-C」を選択します。
Clarity は VESA マウントをサポートしていますか?
はい、Clarity は 100x100mm VESA マウントと互換性があり、4 本の取り付けネジが付属しています。
新しいモニターを組み立てるにはどうすればよいですか?
次の組み立て手順は、製品マニュアルにも記載されています。

スタンドのステムとベースを保護袋から取り出します。ステムをベースに差し込み、ベースの下のつまみネジで固定します。ディスプレイをフォームハウジングに入れたまま、スタンド ステムの上部にある 2 つのラッチを Clarity ディスプレイのノッチに合わせます。背面プレートを Clarity にそっと押し込むと、カチッと音がして所定の位置に収まります。モニターをフォームから持ち上げて、ディスプレイの重量が支えられたままであることを確認します。

タッチスクリーン

Clarity Pro Touch ではどの種類のスタイラスを使用できますか?
Clarity Pro Touch は静電容量式タッチ スクリーンで、家電量販店で広く入手できるすべての静電容量式スタイラスで使用できます。
Windows およびタッチ スクリーン ドライバーがインストールされている Mac では、Clarity は Microsoft ペン プロトコル (MPP) 2.0 以降を使用するほとんどのアクティブ スタイラスもサポートします。これには、ALOGIC Active Surface Stylus (ALASS) が含まれます。
ただし、Clarity Pro Touch は、筆圧感知やショートカット ボタンなどのスタイラスのすべての機能を活用できるわけではありません。
(macOS) タッチ入力が間違った画面を制御しています。
Clarity Touch macOS ドライバーをインストールした後。 , トップバーの「UPDD デーモン」アイコンをクリックし、「識別」を選択して画面上の指示に従います。
(Windows 10/11) タッチ入力が間違った画面を制御しています。
場合によっては、Clarity Max Touch の入力が、コンピューターによって Max Touch ではなく別のディスプレイに適用されることがあります。

通常、タッチスクリーンを使用する前にマウスを Clarity 上に移動すると、この問題は解決します。

解決策 - Windows 複数のディスプレイで Windows 10 または 11 を使用している場合は、タッチ入力を適用するモニターを指定できるため、タッチを使用する前にそのディスプレイにマウスを置く必要がなくなります。

これを行うには、コントロール パネルを起動し、メニューから「ハードウェアとサウンド」をクリックし、次に「ペンまたはタッチ入力用に画面を調整する」をクリックします。



「セットアップ」を選択し、アクティブ スタイラスを使用している場合は「ペン入力」を選択し、指または静電容量スタイラスを使用している場合は「タッチ入力」を選択し、画面上の指示に従います。



このプロセスを完了しても問題が解決しない場合は、他の種類の入力を設定してみてください。
タッチスクリーンを使用して Clarity の設定を調整できますか?



はい。
タッチ コントロールを使用して Clarity のオンスクリーン ディスプレイ (OSD) メニューを開くには、画面の右下隅を 2 本の指で左にスワイプします。メニューを開いた状態で、指を使って Clarity の設定を調整するだけです。

トラブルシューティング

USB-C経由でClarityに接続しました。ビデオを取得できないのはなぜですか?
USB-C 経由で Clarity に接続するには、「DP Alt Mode」と互換性のある USB-C ポート、または Thunderbolt 3/4 ポートに接続する必要があります。DP Alt Mode と互換性のある USB-C ポートには、 「DP」記号が付いていますが、多くの場合、通常の USB-C ポートと同じです。 USB-C ポートの横に記号がない場合は、製品マニュアルまたは製造元の Web サイトを参照して、どのポートが DP Alt Mode と互換性があるかを確認する必要があります。お使いのコンピュータが USB-C DP Alt Mode をサポートしていない場合は、または Thunderbolt 3/4 の場合は、HDMI または DisplayPort 経由で接続することをお勧めします。お使いのラップトップがこれらをサポートしていない場合は、ALOGIC Universal Dock を使用して接続できます。これは、DisplayLink テクノロジーを活用して、非 DP Alt Mode USB-C 接続経由でビデオを配信します。
コンピューターをスリープ モードから復帰させても、Clarity が再びオンになりません。
場合によっては、接続されたコンピューターからのウェイクアップ信号を明確に認識しないことが可能です。この問題は、ドックを介してClarityがコンピューターに接続されている場合に最も頻繁に発生します。

問題を解決するには、電源ボタンを2回押して明確に再起動します。接続されたデバイスを起動シーケンスの一部として認識する必要があります。

この問題が続く場合は、次の手順を試して問題を分離することをお勧めします。
  • 1.明確さをコンピューターに直接接続します
  • 2.別のケーブルまたはポートで接続してみてください。
    • すなわち。 USB-Cの代わりにDisplayPortを使用します
  • 3.コンピューターのオペレーティングシステムを更新します。
あなたの問題が再発し、これらの手順がそれを解決するのに役立ちない場合は、Alogicサポートに連絡してください(support@alogic.co).
HDR を選択できないのはなぜですか?
HDR を選択できない場合 ([画像設定] メニューに表示されない)、次の 2 つの理由のいずれかが考えられます。
1. USB-C を使用して Clarity に接続しています。 HDR は、HDMI または DisplayPort 経由で接続されている場合にのみ利用できます。
2. モニターを SRGB、均一性、または Adob​​e RGB モードで使用しています。これらのビデオ プリセットは両方とも、限られた色域にわたって完璧な色を再現するように設計されています。 HDR はこれらの限られた色域外の色を生成するため、同時に使用することはできません。 HDR を再度有効にするには、プロフェッショナル設定メニューで「標準」モードに戻します。
画面を回転しても、鮮明さが横向きと縦向きに切り替わりません。
画面を物理的に回転させたときに、Clarity がポートレート モードとランドスケープ モードを自動的に切り替えない場合は、画面の「重力センサー」が無効になっている可能性があります。この機能を使用するには、「その他の設定」メニューでこれを再度有効にします。
ラップトップが充電されないのはなぜですか?
すべてのラップトップの USB-C ポートが USB-C Power Delivery を使用した充電をサポートしているわけではありません。多くのラップトップは、USB-C ポートの 1 つでの充電のみをサポートしています。
充電ケーブルが充電をサポートしているラップトップのポートに接続されていることを確認してください。
Clarity のスピーカーが動作しないのはなぜですか?
Clarity のスピーカーを使用するには、コンピュータの設定でアクティブなサウンド出力デバイスとして「27F34KCPD」を選択する必要があります。また、Clarity の背面 3.5 mm オーディオ ポートにオーディオ デバイスが接続されている場合、Clarity のスピーカーは機能しません。

ウェブカメラ

Clarity Pro のウェブカメラの解像度はどれくらいですか?
Clarity Pro のウェブカメラには 8MP センサー、つまり 800 万ピクセルが搭載されています。これは 4K 画像とほぼ同等です。
Clarity Pro のウェブカメラにはマイクが付いていますか?
はい、Clarity Pro の Web カメラには、音声をキャプチャするための 4 つのマイクのアレイが含まれています。
Clarity Pro のスマート Web カメラはどのようなプログラムをサポートしていますか?
Clarity Proのスマートウェブカメラは、コンピューターのオペレーティングシステム(MacOS、Windows、Chrome)が、各アプリケーションとの特定の統合ではなく、ウェブカメラフィードにアクセスしようとするたびに上下にスライドします。

その結果、ウェブカメラは、ウェブカメラにアクセスしようとするプログラムで動作します。

これには、次のようなビデオ会議プログラムが含まれます。

マイクロソフトチーム
Skype
Google Meet
スラック
Cisco WebEx
ズーム
会議に行く

次のようなライブストリーミングプログラムと同様に

オープン放送局ソフトウェア(OBS)
xplit
retremlabs
ウェブカメラのフレームを調整するにはどうすればよいですか?
ウェブカメラのフレーミングを調整するには、まずウェブカメラをスライドさせる必要があります。

Webカメラを必要とするプログラムを開く - Windows 11では、MacOSで「カメラ」アプリまたは「写真ブース」をお勧めします。

このアプリケーションを開き、アクティブなカメラをClarity Proに切り替えます。これは、フォトブースの「カメラ」メニューを使用したり、カメラの「スイッチカメラ」ボタンを押したりすることができます。以下を参照してください。

Clarity Proのウェブカメラを有効にすると、モニターからスライドします。カメラの背面にあるスクロールホイールを使用して、垂直フレーミングを調整できるようになりました。
私のコンピューターでは Clarity Pro の Web カメラが見えません。
Clarity Pro の Web カメラが機能するには、コンピューターがモニターの USB-C ポートまたは USB-B ポートに接続されている必要があります。

次に、アクティブな USB ポートが同じ (USB-C または USB-B) に設定されていることを確認する必要があります。これは、モニターの「USB オプション」メニューの「USB スイッチ」設定を介して設定できます。

これら 2 つが正しくても、システムで利用可能な Web カメラ (27C4KPDW または 27C4KPDWT として表示) に Clarity Pro の Web カメラが表示されない場合は、モニターとコンピューターを再起動します。

それでも Web カメラが表示されない場合は、ALOGIC サポート (support@alogic.co) にご連絡ください。問題の解決をお手伝いします。
Clarity Pro のウェブカメラは滑り落ちません。
1. まず、Clarity の Web カメラをシャーシに押し戻そうとしないでください。これにより、モーターが永久に損傷する可能性があります。
2 次に、Web カメラにアクセスしているプログラムがすべて閉じられていることを確認します。これには、メッセージング、ライブストリーミング、音声録音、およびビデオ キャプチャ アプリケーションが含まれる場合があります。
3 Clarity のアクティブ USB が、コンピュータと Clarity、USB-C または USB-B を接続する USB ケーブルに設定されていることを確認します。このオプションは、Clarity のメニューで [USB オプション] --> [USB スイッチ] に移動すると見つかります。
4 これらのプログラムを閉じても Clarity の Web カメラが格納されない場合は、コードを一度抜き差しして、Clarity をコンピュータに再接続してみてください。
5 これで問題が解決しない場合は、Clarity を再起動し、次にコンピュータを再起動してみてください。
6Clarity を別のコンピューターに接続してみます。
7Clarity の Web カメラがまだ外側の位置で固定されている場合は、次の手順についてのアドバイスが必要なため、当社の専門技術サポート (support@alogic.co) までご連絡ください。

ビデオ

Clarity はどの解像度をサポートしていますか?
Clarity は、横向きモードで最大 4K (3840 x 2160 ピクセル) の解像度、または縦向きモードで最大 2160 x 3840 の解像度をサポートします。
Clarity の最大リフレッシュ レートは 60Hz です。
Clarity は、より低い解像度とリフレッシュ レートでも使用できますが、サポートはモニターが接続されているホスト デバイス (コンピューター) によって異なります。
Clarity は HDR をサポートしていますか?
はい、Clarity は HDR (ハイ ダイナミック レンジ) 600 出力をサポートしています。
HDR を有効にするには、Clarity のホーム メニューを開き、[画像設定]、[HDR] の順に移動します。
Clarity には、次の 3 つの HDR モードから選択できます。
1.HDR
2.標準
3. HDRムービーのHDRデザイン

通常の使用や画像の閲覧には HDR スタンダード、HDR 対応の映画やビデオ ゲームを楽しむには HDR ムービー、色の精度が重要な作業には HDR デザインをお勧めします。
Clarity の色はどのくらい正確ですか?
Clarity モニターはビジュアル アーティスト向けに設計されたモニターとして、高い色精度を実現するように設計されており、次の仕様になっています。

彩度 (NTSC): 130%
彩度 (DCI-P3): 97%
彩度(SRGB): 100%
彩度(Adobe RGB): 99%

平均ΔE: < 1
Clarity にはピクチャ イン ピクチャ モードがありますか?
はい、Clarity はいくつかのピクチャ イン ピクチャ モードをサポートしています。
Specifications
  • Part No.: 27C4KPDWT | 32C4KPDWT
  • Barcode (EAN): 9350784027139 | 9350784028471

Screen Properties:

  • Size: 27" | 32"
  • Panel Type: AHVA IPS
  • Finish: Gloss Anti-Glare
  • Response time: 5ms (with overdrive) 12ms (without overdrive)
  • Resolutions Supported: Up to 3840x2160 @ 60Hz Landscape, Up to 2160x3840 @ 60Hz Portrait
  • Brightness: 350 nits (Min), 400 nits (Typical)
  • Contrast Ratio: 1000:1
  • Viewing Angles: 178°(H)/178°(V)

  • Colour Accuracy: Colour Saturation (NTSC): 130% | Colour Saturation (DCI-P3): 97% | Colour Saturation (SRGB): 100% | Colour Saturation (Adobe RGB): 99% | Average ΔE: less than 1
  • Webcam: 8MP (4K)
  • Touch Screen: 10 Point Multi Touch, One-Glass Solution (OGS)
  • Stylus Compatibility: Microsoft Pen Protocol (MPP)
  • Laptop Charging: Up to 65W over USB-C
  • Ports: USB-C (Connection for Video (DP Alt Mode required), 65W Laptop Charging and Data), 2x HDMI 2.1, DisplayPort 1.4, 2x USB-A (5Gbps, 7.5W Charging, For Accessories), 3.5mm Audio, USB-B (Connects computer to USB-A and Audio ports)

Physical Characteristics:

  • Overall Dimensions (incl. stand): 623.8*415.4*220mm (LxDxH)
  • Monitor Dimensions (without stand): 623.8*48.3*372.2mm (LxDxH)
  • Weight (without stand): 4.8kg
  • Included Stand Dimensions: Base Width: 240mm, Base Length: 225mm | Stem Height: 400mm | Monitor sits 75mm from front of base, 150mm from rear
  • Fold Stand Dimensions: Base Width: 280mm, Base Length: 275mm | Monitor sits 460mm tall, 9cm above table in upright position | Monitor extends 120mm forward from base in fold position

  • VESA Mount: 100x100mm (FDMI MIS-D)
  • Warranty: 2 Years
  • Package Includes: 1x Clarity 27" 4K Monitor, 1x DisplayPort Cable, 1x HDMI Cable, 1x USB-C Cable, 1x USB-B to USB-A Cable, 1x Power Adapter
  • Device Compatibility: Apple, Windows, Chromebook, devices which support HDMI, DisplayPort or USB-C DP Alt Mode video outputs
