Portable Dock for Mac 10-in-1 with Dual Display 4K 60Hz Support - Dark Grey

SKU: U2CXH-DGR
Sale price¥19,499
Sold out

サマーセール ✴️ : コード ALG20 で 20% オフ

2-Year Limited Warranty

Based in Japan

14-Day Returns

14 Days Money Back

Secure Checkout

Expert Support

Your MacBook’s New Best Friend

Unleash the power of your MacBook Pro, MacBook Air or iPad Pro with our 10-in-1 USB-C Dual Display Apple Dock. Designed and engineered to be used with all of your USB-C enabled Apple computers and tablets, this dock provides access to up to two 4K screens and all the ports you need at home or in the office.

Works With Your Apple Devices

Our 10-in-1 Apple Dock can connect you to:

Two 4K displays with: an M3 MacBook Air, M1, M2 or M3 MacBook Pros with Pro, Max or Ultra processor, or any Intel MacBook with twin Thunderbolt ports.

One 4K display with: M1 and M2 MacBook Airs, or M1, M2 or M3 MacBook Pros with a base-level processor, or an iPad Pro.

M1 and M2 MacBook Airds and M1, M2 or M3 MacBook Pros with base-level processors can connect to two screens using a universal ALOGIC dock, such as the CH2 , DX2 , or DX3 .

Windows users should use the ALOGIC Super Dock (U2SH-SGR) instead.

Do More With iPad

Take your iPad Pro’s creative and productive potential to the next level by connecting to a 4K display and all the USB accessories in your home office or studio with a single cable.

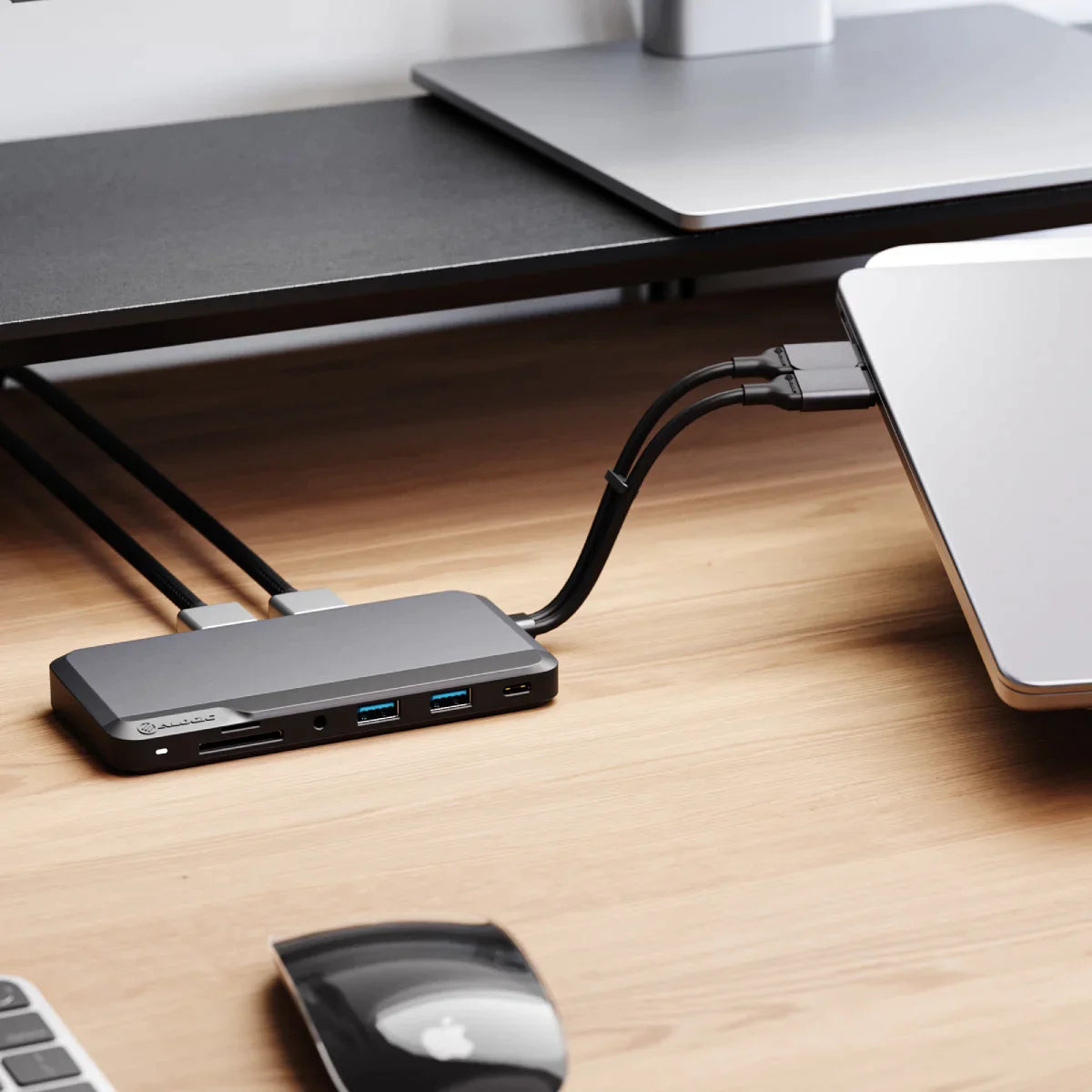

An Innovative Cable Built for MacBook
Dual 4K@60Hz

The 10-in-1 Dock’s Twin USB-C Cables snap magnetically together to make them easy to plug into an M3 MacBook Air, or Intel, M1, M2 or M3 MacBooks (with Pro/Max/Ulta processors) for dual 4K connectivity.

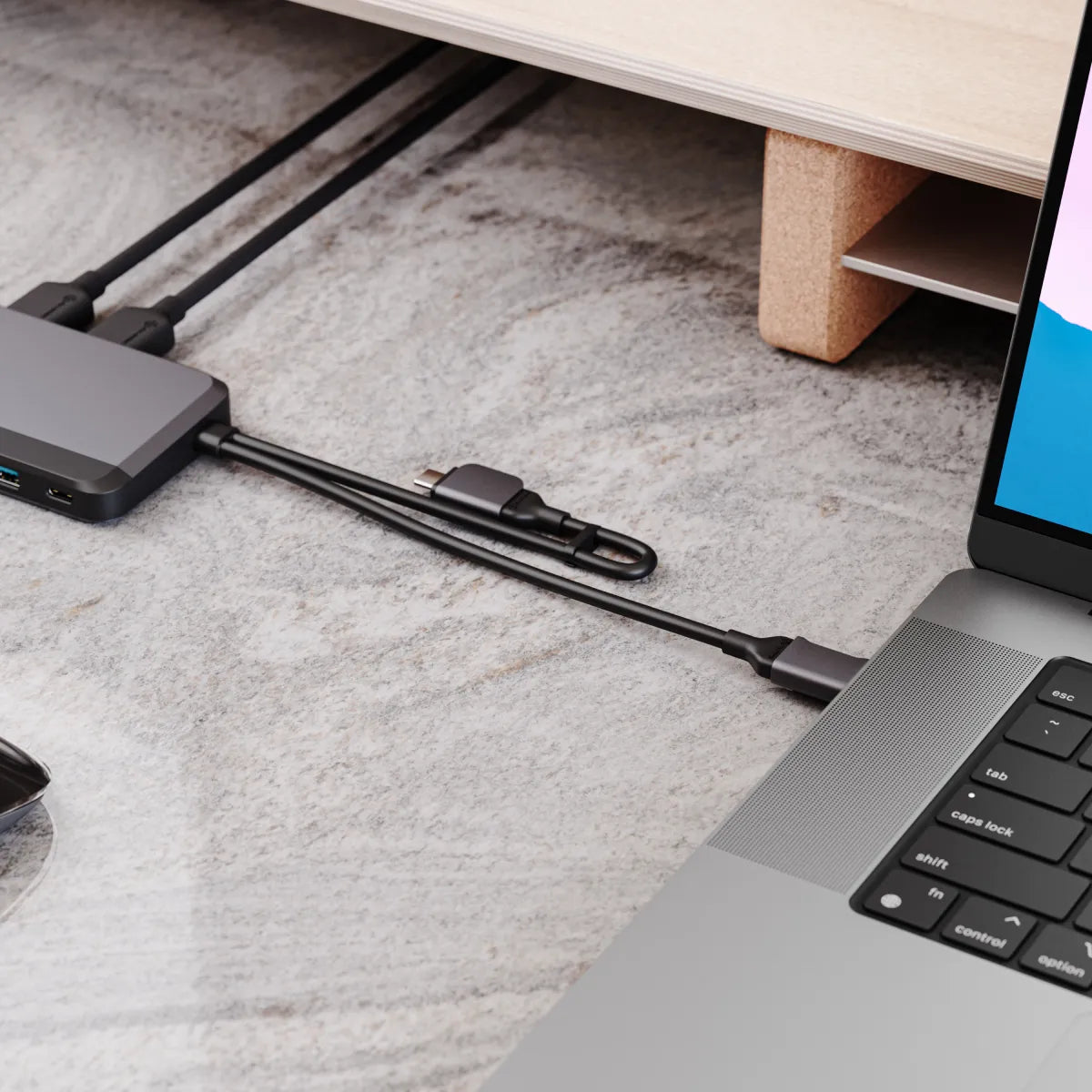

Single 4k@60Hz

The dock’s second cable snaps neatly away when not in use, keeping your desk clean when connecting to a M1 or M2 MacBook Air, base-processor M1, M2 or M3 MacBook Pro or iPad Pro to an extra 4K display.

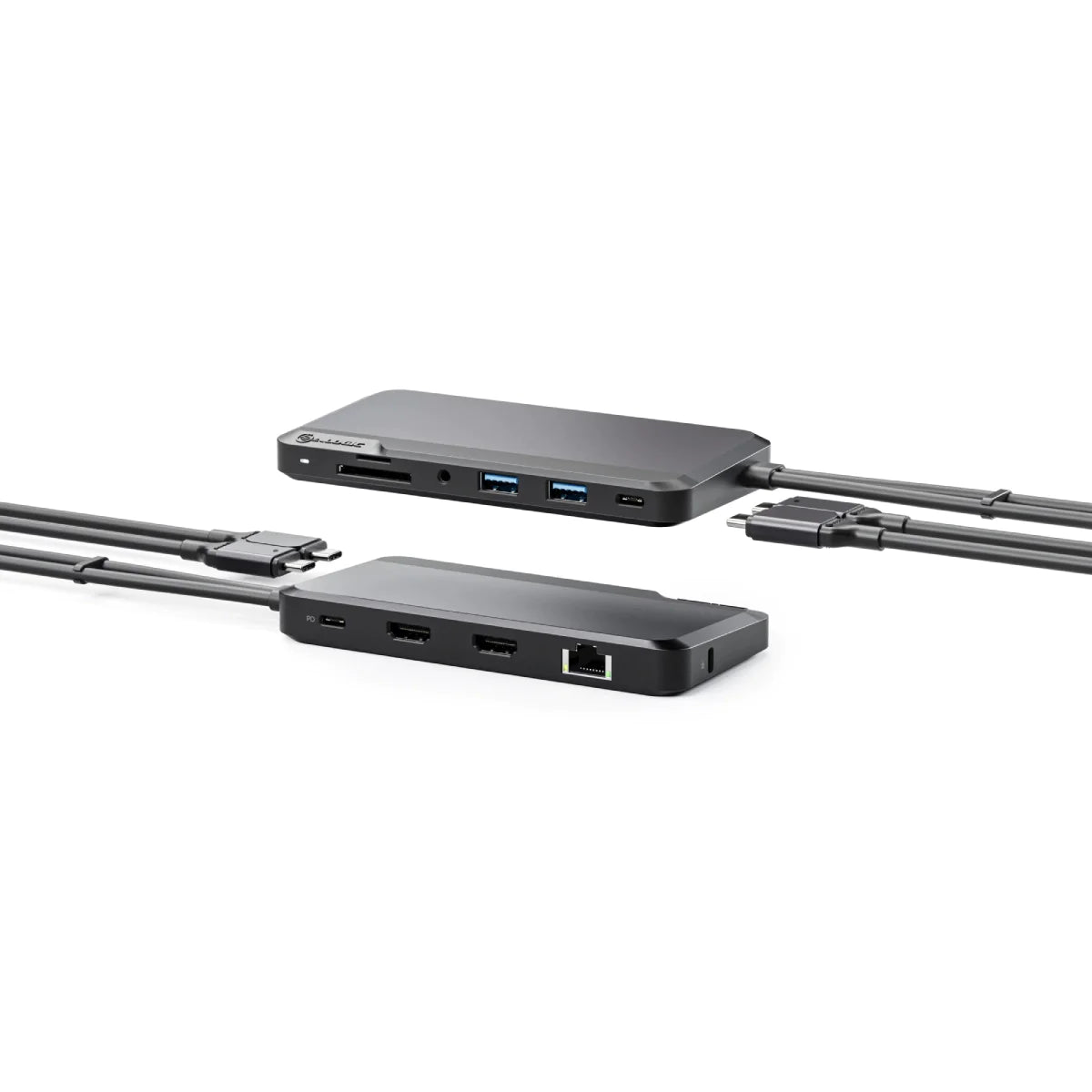

10-in-1 Comprehensive Connectivity

In addition to the ability to connect external monitors, the dock provides access to a full range of connections for USB-C and USB-A peripherals, Ethernet, audio devices and SD and Micro SD card readers for transferring your data, photos and videos.

  • USB-C with 100W Passthrough Charging (3.2 Gen 1, 5Gbps)
  • Audio Input + Output Jack (TRRS, supports CTIA and OMTP)
  • USB-C Data Port (3.2 Gen 1, 5Gbps)
  • 2x USB-A (3.2, 5Gps, SDP)
  • 2 x HDMI 2.0
  • RJ45 Ethernet 1Gbps
  • SD Card Reader
  • Micro SD Card Reader
Plug and Play

No need to worry about software or drivers, just plug the dock into your MacBook or iPad Pro and you’re ready to go.

Compact and Portable

ALOGIC’s design innovation has allowed us to make the Apple Dock small and easy to transport without compromising on any functionality. With the Apple Dock your device becomes a portable workstation capable of delivering all the performance you need whether at your desk or on the road.

Specifications
  • SKU: U2CXH-DGR
  • Barcode (EAN): 9350784026743
  • Input: 1 x USB-C Port (Primary)
    1 x USB-C Port (Secondary – Optional, required for second monitor support)
    Selected port(s) on the host computer should support USB-C DisplayPort Alternative Mode
  • Output: 1 x USB-C 3.2 Gen 1 (5G) with Power Pass thru   100W – Data + Power
    1 x USB-C 3.2 Gen 1 (5G) – Data Only
    2 x USB-A 3.2 (5G), SDP
    1 x Audio / Microphone TRRS, support both CTIA and OMTP
    1 x RJ45 Ethernet 1Gbps
    1 x SD Card and Micro SD Card
    2 x HDMI 2.0
  • Power: Powered by host machine or USB Power Delivery (PD) power source. Host computer can be charged with up to 85W of power when a 100W USB PD power source is connected
  • Resolution: Up to 2 x 4K UHD 60Hz, host computer dependent
  • Package Includes: 1 x Dock
    1 x User Manual
  • Device Compatibility: Recommended for Apple computers and tablets with USB-C ports.

Note: Apple has limited M1/M2 MacBook Airs and
MacBook Pro M1, M2 and M3 devices with base model processors to only supporting
a single external monitor; only one monitor can be used with the above models
when connected to this dock. Dual monitor output is supported on M3 MacBook
Airs, and devices with M1, M2 or M3 Pro, Max and Ultra processors.

  • Compliance: FCC, CE, UKCA, RoHS
  • Warranty: 2 Years
  • Physical Characteristics: Product Dimensions: 138 x 62 x 16mm (L x W x H)
    Colour: Dark Grey and Black
    Weight (product): 150g
    Materials: Aluminium and ABS
